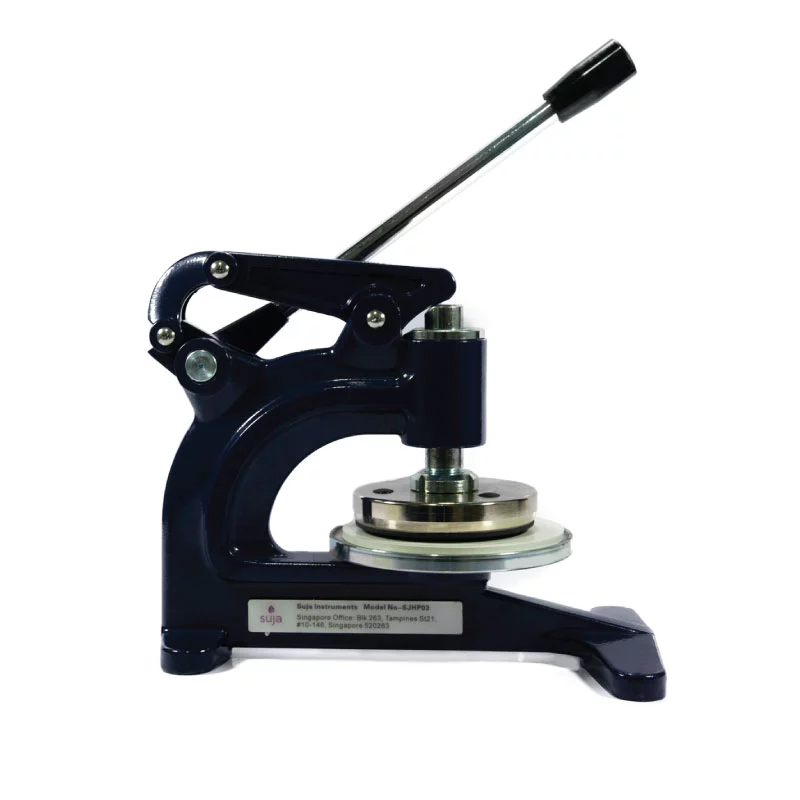

100CM² Hydraulic GSM Cutter (SJHP03)

The BST 100CM² Hydraulic GSM Cutter (SJHP03) is a precision cutting tool widely used in textile testing laboratories and quality control departments. It is specifically designed to cut circular fabric samples with a defined area of 100 square centimeters (cm²), the standard industry size for fabric testing. The hydraulic cutting mechanism provides consistent and reliable results with minimal operator effort.

The SJHP03 features a high-quality blade that can cut through various fabrics, from lightweight to heavy-duty materials. Its sturdy construction and user-friendly design make it easy to use and maintain, providing fast and efficient results for textile professionals.

The BST 100CM² Hydraulic GSM Cutter is an essential tool for fabric testing, quality control, and product development, enabling textile professionals to obtain reliable and reproducible results. With its precision cutting capabilities and hydraulic mechanism, the SJHP03 is a valuable investment for any textile testing laboratory or quality control department in Bangladesh.

How does a hydraulic GSM cutter work?

A hydraulic GSM cutter is a precision cutting tool used to cut circular fabric samples with a defined area for fabric testing. The cutting mechanism is powered by hydraulic pressure, providing consistent and reliable results with minimal operator effort. The fabric sample is placed on the cutting surface to operate the cutter, and the operator activates the hydraulic pressure by pressing a lever or foot pedal. The hydraulic pressure then forces the cutting blade down onto the fabric sample, cutting it into a circular shape with a defined area.

The blade is typically made of high-quality steel, with a sharp cutting edge that can cut through various fabrics, from lightweight to heavy-duty materials. The hydraulic GSM cutter is essential for fabric testing, quality control, and product development, enabling textile professionals to obtain reliable and reproducible results. With its precision cutting capabilities and hydraulic mechanism, the hydraulic GSM cutter is a valuable investment for any textile testing laboratory or quality control department.

FEATURES

• Material Aluminum
• Cutting Area 100 sq. cm
• Cutting Thickness 0.1mm-10mm
• Blade Diameter 112.84mm
• Fabric Cutting area 100 100CM²
• Machine Size 34cm*34cm*24cm(1-2cm) Tolerance

SPECIFICATION
