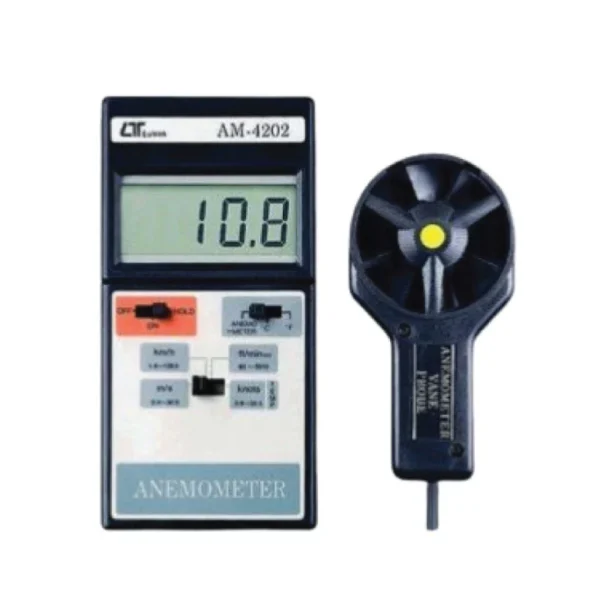

The Lutron portable Anemometer (AM-4202) provides fast accurate readings with digital readability and the convenience of a remote sensor separately. Multi-functions for air flow measurement: m/s, km/h, ft/min, knots temperature measurement. Low-friction ball-bearing design resulting in accuracy at both high and low velocities. Conventional twisted vane arms, always a source of unreliability have been eliminated. Data hold Compact housing cabinet. Wide applications use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature etc.
FEATURES OF LUTRON ANEMOMETER (AM-4202)
- Display 18mm (0.7″) LCD (Liquid Crystal Display), 3 1/2 digits.
- Measurement m/s (meters per second), km/h (kilometers per hour), ft/min (feet/per minute), knots (nautical miles per hour), Temp.- , (AM-4202 only). Data hold.
- Operating temp. 0 to 50 (32 °F to 122°F ).
- Operating humidity Less than 80 % RH.
- Air velocity sensor structure Conventional twisted vane arms and low friction ball bearing design.
- Temp. Sensor Naked-bead type k thermocouple probe.
- Power Supply DC 9V 006P, MN1604 (PP3) battery (Heavy Duty Type) or equivalent.
- Power consumption Approx. DC 9 mA.
- Weight 325 g/0.72 LB (including battery).
- Dimension Instrument: 168 x 80 x 35mm (6.6 x 3.2 x 1.2 inch).
- Dimension Sensor Head Round, 72 mm Dia.
SPECIFICATION OF LUTRON ANEMOMETER (AM-4202)
| Name | Details |
| Model | AM-4202 |
| Brand | Lutron |
| Origin | Taiwan |
| Display | 18mm (0.7″) LCD (Liquid Crystal Display), 3 1/2 digits. |
| Measurement | m/s (meters per second), km/h (kilometers per hour), ft/min (feet/per minute), knots (nautical miles per hour), Temp.- , (AM-4202 only). Data hold. |
| Operating temp. | 0 to 50 (32 °F to 122°F ). |
| Operating humidity | Less than 80 % RH. |
| Air velocity sensor structure | Conventional twisted vane arms and low friction ball bearing design. |
| Temp. Sensor | Naked-bead type k thermocouple probe. |
| Power Supply | DC 9V 006P, MN1604 (PP3) battery (Heavy Duty Type) or equivalent. |
| Power consumption | Approx. DC 9 mA. |
| Weight | 325 g/0.72 LB (including battery). |
| Dimension | Instrument: 168 x 80 x 35mm (6.6 x 3.2 x 1.2 inch). |
| Dimension Sensor Head | Round, 72 mm Dia. |
| Standard accessories | Instruction manual: 1 PC. Sensor probe: 1 PC. Carrying case: 1 PC. |
